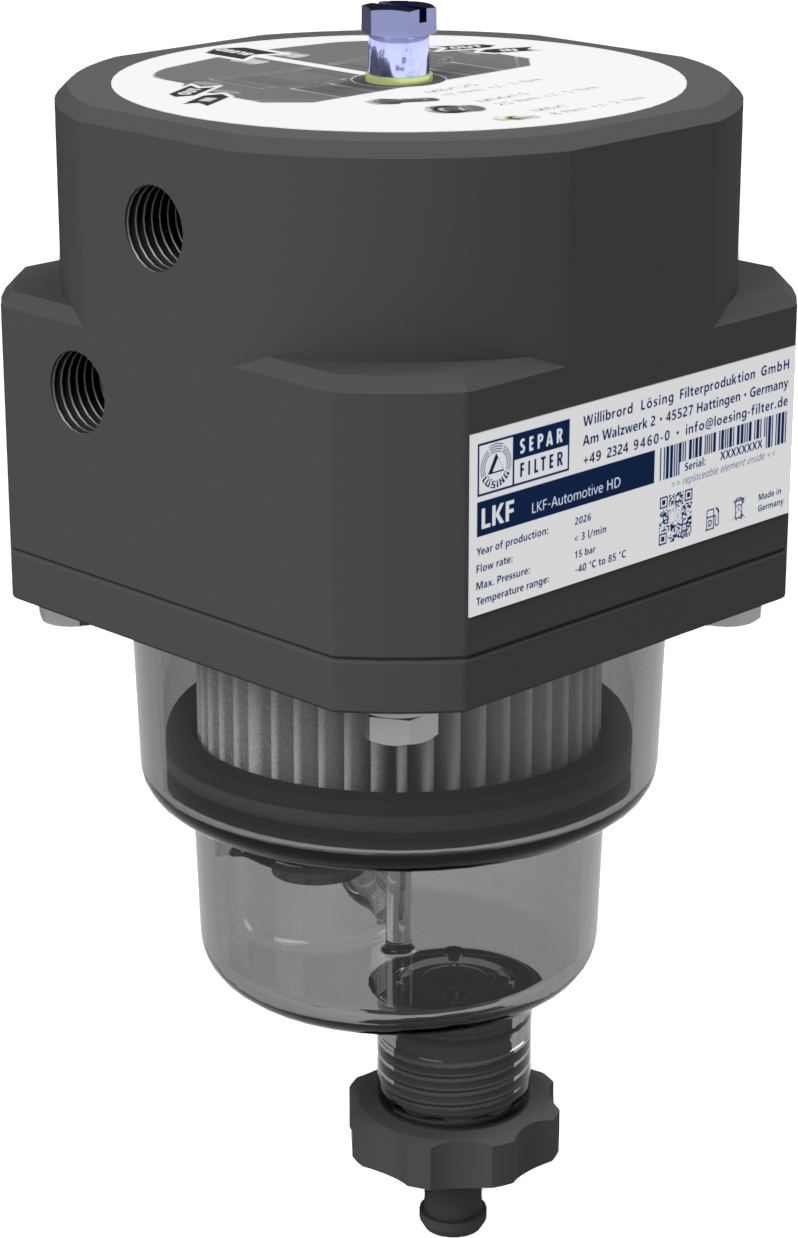

FUEL FILTER
SEPAR LKF-Automotive HD
LKF-Automotive HD reliably protects diesel engines using the proven two-stage coalescence filtration principle. Water and dirt particles are effectively removed from the fuel, ensuring optimal protection for sensitive injection systems.
The HD version is specifically designed for high operating pressures and is therefore suitable for demanding diesel applications in on- and off-highway systems.
Thanks to the robust aluminium filter head, the HD version impresses with its high durability, compact design and universal application options.
Do you have any questions?
Do you have any questions or would you like individual advice?
We are just a click away and look forward to your message!
Fuel filter
SEPAR LKF-Automotive HD
LKF-Automotive HD reliably protects diesel engines using the proven two-stage coalescence filtration principle. Water and dirt particles are effectively removed from the fuel, ensuring optimal protection for sensitive injection systems.
The HD version is specifically designed for high operating pressures and is therefore suitable for demanding diesel applications in on- and off-highway systems.
Thanks to the robust aluminium filter head, the HD version impresses with its high durability, compact design and universal application options.
Advantages & properties
- Robust coalescence filter for reliable water and particle separation
- Two-stage filtration for optimal protection of injection systems
- Large filter surface area, water separation efficiency > 95%
- Specifically designed for high operating pressures: continuous up to 15 bar
- High mechanical strength and low flow resistance
- Suitable for all diesel vehicles and machines, HVO-resistant
Technical data
| Dimensions | approx. 198x97x97 mm |
|---|---|
| Net weight | 1.3 kg |
| Ambient temperatures | -40 °C … 85 °C |
| Max. flow rate | 3 l/min |
| Permissible system pressure, continuous | 15 bar |
| Max. water absorption capacity | 70 ml |
| Water separation efficiency | >95% |
| Filter fineness | 3 µm, 6 µm, 10 µm |
Options
WSA
Downloads
